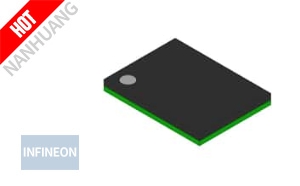

IRF7701TR Images
- Manufacturer: Infineon Technologies
- Category: Discrete Semiconductor Products~Transistors - FETs, MOSFETs - Single SupplierDevicePackage: 8-TSSOP
- Description: MOSFET P-CH 12V 10A 8TSSOP
- COMPETITIVE PRICE and DELIVERY TIME
- Order with confidence, there are no lead times for in-stock products.
Download Datasheet (PDF)
IRF7701TR Specifications:
- MfrPart.: IRF7701TR
- Mfr: Infineon Technologies
- Description: MOSFET P-CH 12V 10A 8TSSOP
- Product Category: Discrete Semiconductor Products~Transistors - FETs, MOSFETs - Single
- Package: Tape & Reel (TR)
- Series: HEXFET®
- PartStatus: Obsolete
- FETType: P-Channel
- Technology: MOSFET (Metal Oxide)
- DraintoSourceVoltage(Vdss): 12 V
- Current-ContinuousDrain(Id)@25°C: 10A (Tc)
- DriveVoltage(MaxRdsOnMinRdsOn): 1.8V, 4.5V
- RdsOn(Max)@IdVgs: 11mOhm @ 10A, 4.5V
- Vgs(th)(Max)@Id: 1.2V @ 250µA
- GateCharge(Qg)(Max)@Vgs: 100 nC @ 4.5 V
- Vgs(Max): ±8V
- InputCapacitance(Ciss)(Max)@Vds: 5050 pF @ 10 V
- FETFeature: -
- PowerDissipation(Max): 1.5W (Ta)
- OperatingTemperature: -55°C ~ 150°C (TJ)
- MountingType: Surface Mount
- SupplierDevicePackage: 8-TSSOP
- IRF7701TR Infineon, MOSFET P-CH 12V 10A 8TSSOP, Discrete Semiconductor Products~Transistors - FETs, MOSFETs - Single
IRF7701TR, Infineon authentic parts in stock from Infineon authorized distributors, order today, can ship immediately.
