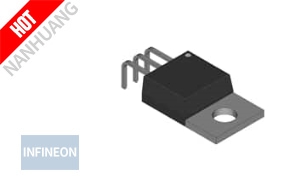

IKP20N60H3XKSA1 Images
- Manufacturer: Infineon Technologies
- Category: Discrete Semiconductor Products~Transistors - IGBTs - Single Package/Case: TO-220-3
- Description: IGBT 600V 40A 170W TO220-3
- COMPETITIVE PRICE and DELIVERY TIME
- Order with confidence, there are no lead times for in-stock products.
Download Datasheet (PDF)
IKP20N60H3XKSA1 Specifications:
- MfrPart.: IKP20N60H3XKSA1
- Mfr: Infineon Technologies
- Description: IGBT 600V 40A 170W TO220-3
- Product Category: Discrete Semiconductor Products~Transistors - IGBTs - Single
- Package: Tube
- Series: TrenchStop®
- PartStatus: Active
- IGBTType: Trench Field Stop
- Voltage-CollectorEmitterBreakdown(Max): 600 V
- Current-Collector(Ic)(Max): 40 A
- Current-CollectorPulsed(Icm): 80 A
- Vce(on)(Max)@VgeIc: 2.4V @ 15V, 20A
- Power-Max: 170 W
- SwitchingEnergy: 690µJ
- InputType: Standard
- GateCharge: 120 nC
- Td(on/off)@25°C: 16ns/194ns
- TestCondition: 400V, 20A, 14.6Ohm, 15V
- ReverseRecoveryTime(trr): 112 ns
- OperatingTemperature: -40°C ~ 175°C (TJ)
- MountingType: Through Hole
- Package/Case: TO-220-3
- IKP20N60H3XKSA1 Infineon, IGBT 600V 40A 170W TO220-3, Discrete Semiconductor Products~Transistors - IGBTs - Single
IKP20N60H3XKSA1, Infineon authentic parts in stock from Infineon authorized distributors, order today, can ship immediately.
